Introduction to Bitcoin Core IPC

For the last few months I've been studying and contributing to Bitcoin Core's inter-process communication (IPC) layer. I've added test coverage, type mapping support, and logging to the library behind it, and reviewed other contributors' PRs along the way. This post is a breakdown of what the IPC layer is and why it matters.

The problem with the current architecture #

Bitcoin Core today ships as a monolith. bitcoind bundles consensus, networking, and wallet into a single binary. bitcoin-qt adds the GUI on top. It works, but all those concerns share the same process.

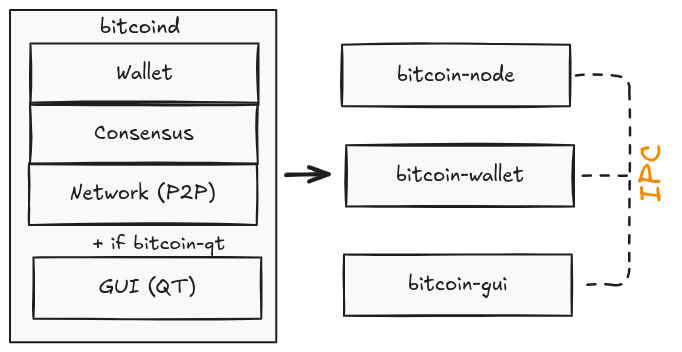

The process separation project aims to break this apart into three specialized binaries:

Why break apart a binary that already works?

Security. Crashes stay contained: if bitcoin-gui goes down, bitcoin-node keeps running, whereas in a monolith a crash anywhere takes the whole process down. Each binary also links only the libraries it needs and can be sandboxed independently. Qt is a good example: large and complex, with a public record of buffer overflows and use-after-free bugs in its image and SVG rendering alone. In a monolith that code shares a process with your wallet keys. If the wallet binary never links Qt, that whole class of exposure disappears.

Maintenance. Splitting into binaries forces clear interface boundaries between what each process owns, which makes the code easier to reason about.

But splitting the monolith breaks something that used to be free. In bitcoind, the wallet and the node live in the same process: they share memory and call each other's functions directly. The wallet still needs to ask the node for blocks, and the node still needs to notify the wallet about new transactions, but once they are separate processes a function call in one can no longer reach a pointer in another. They need a way to talk across the process boundary, and that mechanism is IPC.

IPC restores the conversation, but not for free. A call that used to be a plain function call now has to copy its arguments into a message, cross a socket, and come back the same way, and debugging gets harder once a single logical operation spans two processes.

What is IPC? #

Bitcoin Core currently uses Unix domain sockets for local communication between processes. TCP sockets are going to be used to support Windows, and could eventually let processes running on different machines talk to each other.

How does Bitcoin Core IPC work? #

Bitcoin Core relies on libmultiprocess, a C++ library and code generator that makes calling functions and referencing objects across process boundaries feel like ordinary C++ code. It uses Cap'n Proto as its RPC framework over Unix domain sockets. Cap'n Proto was chosen over alternatives like gRPC or JSON-RPC because it allows interface pointers to be passed as method arguments and return values, so object references and bidirectional requests work out of the box. That matches how Bitcoin Core's internal interfaces are structured.

Inside libmultiprocess #

libmultiprocess does its work in two phases. At build time, a code generator writes the glue code. At run time, a runtime carries the calls.

mpgen is a code generator that reads .capnp interface definition files and produces C++ client and server classes. Here's a trimmed piece of a real one, mining.capnp, the interface mining software uses to talk to the node:

interface Mining $Proxy.wrap("interfaces::Mining") {
    isTestChain @0 (context :Proxy.Context) -> (result: Bool);
    createNewBlock @4 (context :Proxy.Context,
                       options: BlockCreateOptions)
                      -> (result: BlockTemplate);
}

Note the return type of createNewBlock: BlockTemplate is not a struct, it's another interface, and that distinction is the whole point. A struct return value gets serialized and copied across the socket. An interface return value does not: the BlockTemplate is constructed inside the node and never leaves it. What actually crosses the wire is a capability id, a small handle pointing back to that one object. The caller holds a proxy that looks like a local BlockTemplate, but every method it calls (getBlock, submitSolution) is routed back over the socket to the real object living in the node. This is the interface-pointers-as-arguments capability that drove the choice of Cap'n Proto: references to objects, not just plain data, can be passed as arguments and return values.

From a file like this, mpgen produces C++ client and server classes. The generated client class looks like a normal C++ object from the caller's side. The $Proxy.wrap annotation ties it to the existing interfaces::Mining abstract class, so callers don't even see a new type. The generated server class receives the call on the other end and dispatches it to the real implementation. All socket handling is hidden inside the generated code.

The runtime manages connections, threading, and serialization at call time. When you call a method on an IPC object, the runtime serializes the arguments over the socket, waits for the response, and deserializes the return value. Serialization here means mapping C++ types to Cap'n Proto structures and back. I've worked on that mapping, upstreaming std::unordered_set support from Bitcoin Core into libmultiprocess, and it works exactly how you'd guess: the runtime knows how to build and read the wire representation of each supported type.

The threading part is easy to underestimate. It's not just a socket: all traffic routes through a dedicated event loop thread, and each thread making IPC calls gets a matching thread on the other side. The main reason is deadlock prevention.

Picture a thread that already holds a lock making a synchronous IPC call, and the other side calling back into it while the call is in flight. Bitcoin Core leans on recursive mutexes like cs_main: in a single process the callback runs on the thread that holds the lock, so it re-enters and proceeds. Across processes, if that callback landed on an arbitrary thread, it would block trying to take a lock the original thread still holds, and the call would deadlock. That's why each request carries a callbackThread reference: callbacks are routed back to the exact thread that made the original call, so recursive mutexes re-enter as expected and thread names stay meaningful, just like in the single-process code.

Current status #

The full process separation vision is still in development. As of Bitcoin Core v31.0, multiprocess mode runs the same monolithic node code, just with an IPC socket exposed so external clients can connect to it. The true internal split between bitcoin-node, bitcoin-wallet, and bitcoin-gui is not yet released. The one interface already seeing real external use is mining. Stratum V2 pool software connects directly to the node over IPC to fetch block templates and submit work, replacing the old mining JSON-RPC flow with a typed, bidirectional interface.

The internal split is still landing in PRs. The full set of open work and the current state of the project is tracked in issue #28722. The base PR to follow is #10102, which lets you build bitcoin-node, bitcoin-wallet, and bitcoin-gui as separate binaries connected over IPC. Once built, running bitcoin -m node -debug=ipc starts bitcoin-node, which in turn starts bitcoin-wallet, and the two talk to each other over IPC. With -debug=ipc you can watch those messages go back and forth in the logs (the line announcing a new socket connection was my first contribution to libmultiprocess).

This post stayed at the high level on purpose. In the next one I'll get on the ground: running bitcoin-node and bitcoin-wallet and tracing the actual Cap'n Proto messages between them.
